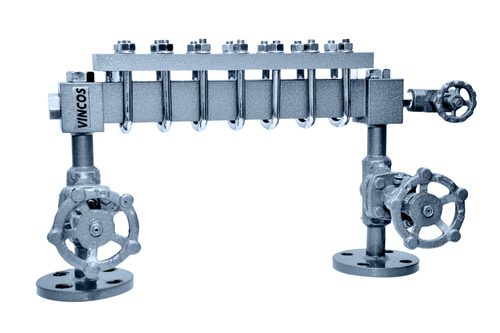

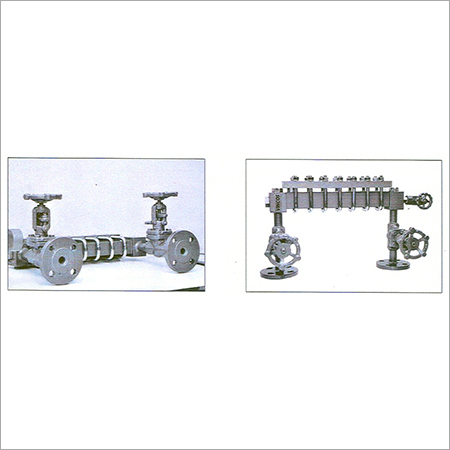

Reflex Type Level Gauge Assembly

Reflex Type Level Gauge Assembly
Reflex Type Level Gauge Assembly
Product Code : 03
Brand Name : VENKATESHWAR INSTRUMENTATION & CONTROL SYSTEMS
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cheque, Others
  • Supply Ability
  • As per requirement Per Month
  • Packaging Details
  • Customized.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

Reflex Type Level Gauge Assembly

With the help of our experts, we are able manufacture, export and supply an excellent assortment of Reflex Type Level Gauge. This level gauge is designed for the applications that involve high temperature and pressure along with the usage of corrosive fluids, steam, Water for Boilers, Tanks etc. The offered level guage is manufactured using premium quality components and the latest technology as per the set international standards under the stern observation of our adroit professionals. Further, we are offering this Reflex Type Level Gauge to our clients

Features

  • Longer Service Life
  • Precise Measurement
  • IBR Certification

Components Used

  • Liquid Chamber
  • Cover Plate
  • Gauge Glass (reflex)
  • Gasket
  • Cushion
  • Globe Valve
  • Vent Plug
  • 'u' Bolts
  • Process Connection
  • Drain Valve
  • Auto Bail Check
  • Adapter
  • Studs
  • Nuts & Washer
Specification

Gauge Classification

Low Pressure x 35 Kg/Cm2,Medium Pressure x 85 Kg/Cm2

Test Pressure

High Pressure x 165 Kg/Cm2,Very High Pressure x 210 Kg/Cm2

Gauge Glass

Klinger Tempered Soda Ash/ Borosilicate (30w x 17mm x Thick)/Klinger Tempered borosilicate (34w x 17mm x Thick)

Cushion/Gasket

Spiral Wound With Graphite Filler,Ptfe,Non-Asbestos,Metallic.

Body(Liquid Chamber)

ASTM A-105

Cover Plate

ASTM A-105

Chamber Connection

1/2”NPT,M-20

Bolts

A193 GR.B7,EN-19,EN-8,A-105

Nuts

A194 GR.B4,EN-19,EN-8,A-105

Gauge Connection

Hook Up Side-Side Chamber Or Straight Thru' Top-Bottom Chamber

Process(Vessel) Connection

Flanged 20 Or 25 NB to BS-10 Table 'H' Or Table 'J',CL-300,CL-600 Or As Per Requirement

Isolating Valves

Globe Valve With Auto Ball Check

Vent

1/2 NPT,M-20

Drain

1/2 NPT,M-20

CC Distance(mm)

300 mm,400 mm Or as per Requirement

Certification

IBR
