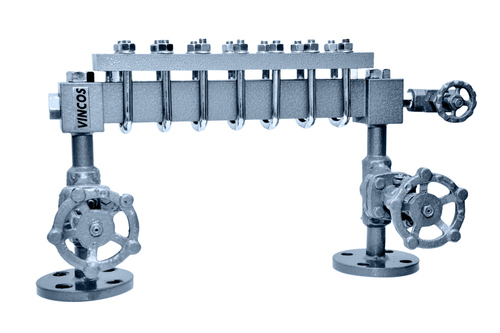

Reflex Level Gauge

Reflex Level Gauge
Reflex Level Gauge
Product Code : VNCS-RTLG-01
Brand Name : VENKATESHWAR INSTRUMENTATION
Trade Information
  • Unit of Measure
  • Piece/Pieces
  • Payment Terms
  • Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C), Western Union, Paypal
  • Supply Ability
  • 1000 Per Month
  • Delivery Time
  • Week
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Wooden Packing Box
  • Main Export Market(s)
  • Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America, South America
  • Main Domestic Market
  • All India
  • Certifications
  • IBR/ISO 9001-2015 Lyodds
Product Description

With the help of our experts, we are able manufacture, export and supply an excellent assortment of Reflex Level Gauge. This level gauge is designed for the applications that involve high temperature and pressure along with the usage of corrosive fluids. The offered level guage is manufactured using premium quality components and the latest technology as per the set international standards under the stern observation of our adroit professionals. Further, we are offering this Reflex Level Gauge to our clients in various specifications at competitive prices.

Key Features:

  • Longer service life
  • Precise operation
  • High temperature resistance
Components Used
  • Liquid chamber
  • Cover Plate
  • Gauge Glass (Reflex)
  • Gasket
  • Cushion
  • Isolating Valve
  • Vent Plug
  • 'U' Bolts
  • Process Connection
  • Drain Valve(B.V)
  • Auto Ball Check
  • Adapter
  • Studs
  • Nuts & Washer

 Specification:-

 Gauge Classification X
 Low pressure x 30 kg/cm2,Medium pressure x 85 Kg/cm2
 Test Pressure
 High pressure x 165kg/cm2,Very high pressure x 210kg/cm2
 Gauge glass

 Tempered soda ash/Borosilicate(30w x 17mm Thk)/

Tempered borosilicate (34wx 17mm Thk)

 Cushion/Gasket
 CAF,CNAF,PTFE,SS304 Spiral wound with graphite Filler & SS316 Spiral wound with Graphite Filler.
 Body(liquid chamber)
 CS,ASTM A-105,SS304,SS316
 Cover plate
 CS,ASTM A-105,SS304,SS316
 Chamber Connection
 1/2" NPT(F)
 Bolts  CS or SS304 or A193 Gr.B7
 Nuts  CS or SS304 or A194 Gr.B4
 Gauge connection
 Hook up (side-side chamber conn) or Straight thru'(top-bottom chamber conn)
 Process(vessel) conn.

 Flanged 20 or 25 NB to various standard & pressure ratings

Screwed 3/4" male shank,union & spherical union.

 Isolating Valves
 Offset needle valve x auto ball check x Screwed bonnet (85kg/cm2)
 Vent  1/2" NPT(BSP for PP/PTFE MOC)plug/valve(ball,Needle,Diaphragm,Globe,Gate as reqd)
 Drain  1/2" NPT(BSP for PP/PTFE MOC)plug/valve(ball,Needle,Diaphragm,Globe,Gate as reqd)
 CC Distance(mm)

 a) 170 to 2120(Hook up),

b) 330 to 2280 (straight through)
